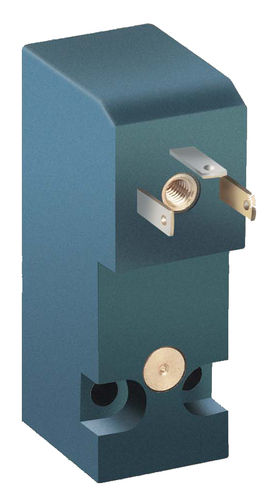

Pilot-operated solenoid valve

3-wayNCNO

The 15 mm pilot valve has been designed and developped by Amisco as a logical evolution of the traditional product range manufactured for the pneumatic market. The 15 mm solenoid valve is designed for those applications, more and more common on the actual market, where besides high performances in terms of pressure and flow, minimum dimension, very low power consumption and high reliability even at high cycling rates are specified. This system is designed for use with air. The solenoid valve is composed by an encapsulated coil joined to a plastic valve body made by PPS. The assembly is not detachable. All the 15mm pilot valves feature: •heat resistant bobbin moulded with 30% glass filled polyester (PBT) •class H 200°C copper wire according to IEC 317-8 •encapsulation with high quality specially designed glass filled polyamide (PA66) •stainless steel guiding tube •plunger and core made by a magnetic stainless steel specially designed for solenoid applications.
