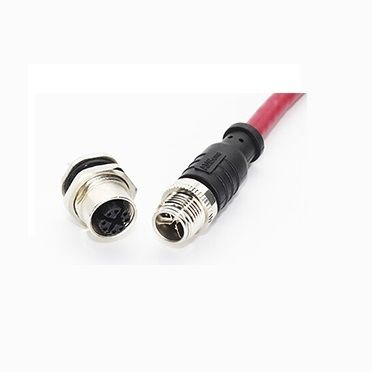

M12 connector AM12F0822X00 seriesdataDINcircular
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- DIN
- Shape
- circular
- Connection type
- crimp, dip solder
- Size
- M12
- Material
- silicone
- Product applications
- transmission
- Domain
- industrial, telecommunication, for data transmission
- Other characteristics
- panel-mount, category 6a, modular
- Primary current
0.5 A
- Voltage
50 V
- Data rate
10 GB/s
Description
M12 X coding
■ Specified for Ethernet
■ Pre-molded with cables or soldered with single wires for immediate use
■ Sealed on the single wire side for optimum leak-tightness
■ Panel mount receptacles: rear/front mount, vertical/angled
■ Version: 8 pins
■ For Data Transmission up to 10Gbps, CAT 6a
■ Easy field assembly cable type available
■ Solder/ dip-solder PCB/Crimp connection
■ Excellent EMC shielding
■ Degree of protection IP67
■ Customer specific assemblies and single wire lengths available
Description
Your Benefits
-Easy PCB assembly: one-piece connectors for wave soldering
-All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
-For high transmission reliability: optional shield connection to the housing by means of shield contact
