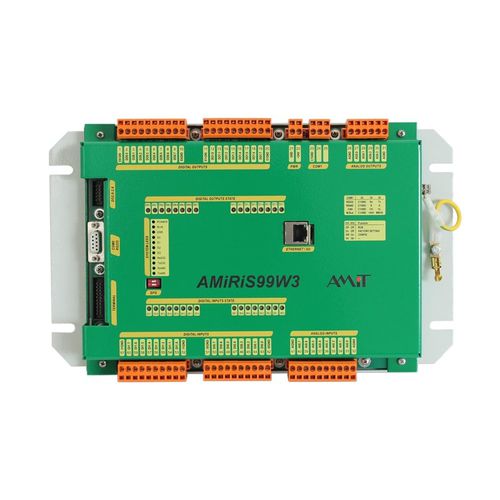

Compact PLC AMiRiS99W3

digital inputdigital outputsRS485

Compact all-metal control system designed for smaller applications for measurement and regulation. Its computing abilities exceed standard PLC level. Thanks to extensive program modules library with a number of additional features, AMiRiS99W3 provides sufficient capacity for managing demanding requirements of machinery and technology control. The AMiRiS99W3 control system is to be mounted to switchboard base plate; it supports direct connection with the APT130 industrial terminal. Robust cover and electronic circuits design provide high interference resistance. Using the AM-xx series modules, the system can be extended by analogue outputs and additional communication lines such as RS232, RS485, CAN, M-Bus etc. Moreover, AMiRiS99W3 also supports TCP/IP communication within the information system DB-Net/IP and the protocol MODBUS TCP/IP client/server. The internal web server allows us to prepare a simple visualisation of the technology controlled. A micro SD card is designed to store long-term archive data. AMiRiS99W3 is made for use in an extended operating temperature range -40 to 70 °C. Typical uses: machines and devices control, waste water treatment plants management, measurement and regulation of local technology parts, data monitoring and local collection, regulation in boiler rooms and heat exchangers, air-conditioning units control, etc. -16× digital output 24 V / 0.5 A with GI -16× digital input 24 V with GI -8× analogue input U / I / Ni1000 -0 / 2 / 4× analogue output U / I -RS232, 10 / 100 Mbps Ethernet interface -optionally RS485 / CAN / M-BUS / RS232 -APT130 terminal (4 × 20 characters) can be connected
