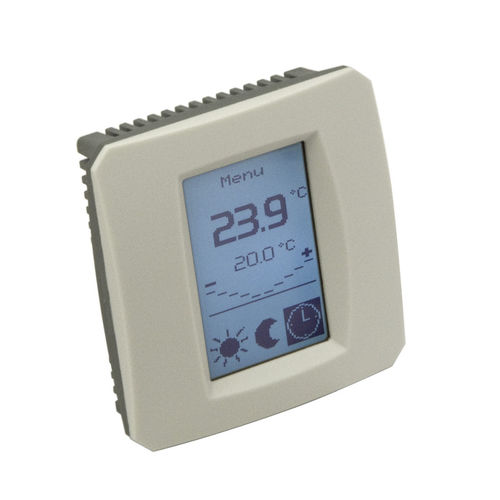

TFT graphic display temperature regulator AMR-OP70 series

with LCD displaywith touchscreenprogrammable

The AMR-OP70RH is an entirely new type of programmable wall-mounted controllers. The main element is the graphic display 58 × 38 mm with a touch screen that provides comfortable control at the user’s fingertips. The unit measures room temperature. Users may use the DetStudio development environment to program any function into the controller – for example room regulation mode settings, setpoint temperature correction, Fan Coil unit speed, control of blinds, etc. A large advantage of the unit is that all control functions are managed using a single controller. In cooperation with other AMREG controllers, AMR-OP70 performs any type of technology control in buildings. It only depends on the software. The on-wall controller AMR-OP70RHC adds measurement of the current CO2 concentration in the room. The user, therefore, gets quick information not only on the temperature but also on CO2 concentration in the room. The controller is further equipped with acoustic signalisation to alert the user about exceeded of the set CO2 concentration level. The user is able to set this level by themselves or to send it from a superior control system. On-wall controllers with CO2 concentration measurement are primarily used as control system peripheries to provide a healthy interior environment in buildings. They are also great as autonomously operated devices, as they immediately alert users to deteriorated room air quality by means of an acoustic signal.
