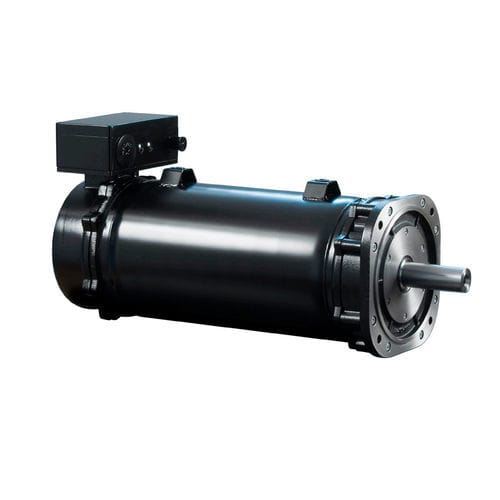

AC servomotor DT 13 series

IP54compactair-cooled

• Positioning and actuating drive for drive tasks with exceptional requirements in terms of torque and performance density • Control drive for continuous operation at lower and average speeds • For applications with demanding cooling situations due to a high integration density, pollution or ambient temperature conditions • Control drive for machines with exceptional requirements in terms of requiring little maintenance Connection cable DT13-360 nominal cross-section of copper conductor 16 mm2 DT13-440 nominal cross-section of copper conductor 25 mm2 DT13-650 nominal cross-section of copper conductor 35 mm2 • Exceptional standstill torques • Exceptional torques and power density • High performance at lower speeds • Servo motor for applications that demand a high level of motor performance Resilient The high-pole servo motors of the DT series are designed for high torques and have increased intrinsic moments of inertia. This means they can also accelerate larger loads highly dynamically without a gearbox as a direct drive, thereby increasing the productivity of the machine. Protected The magnets in the rotor are inserted and fixed by means of a plastic overmoulding. This additionally protects the magnets from dust, gases and moisture – for permanently stable magnetic values. Shortened The high-torque motors of the DT series are also available in compact form: the DTK design is shorter, so it fits where space is limited. The DTK can drive linear axes, for example.
