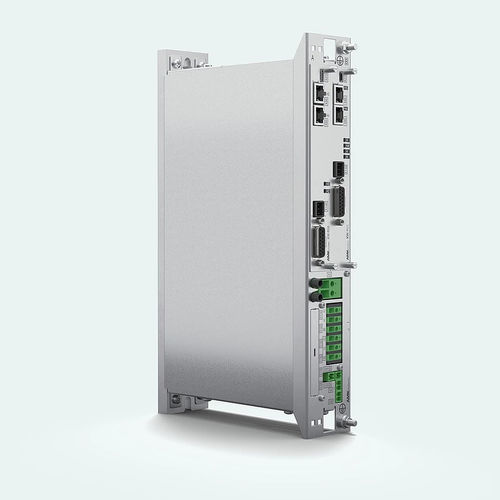

AC/DC power supply KWD series
PWMthree-phasewith short-circuit protection

AC/DC power supply
AC/DC power supply
AC/DC power supply
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Technology
PWM
Network
three-phase
Protection
with short-circuit protection, with overcurrent protection
Mounting
rack-mount
Certifications
ISO, TUV
Features
compact
Secondary function
inverter
Applications
for industrial applications
Other characteristics
high-power
Input voltage

Max.: 650 V

Min.: 540 V

Output voltage

350 V

Current

3.8 A, 7.6 A, 19 A

Output frequency

Max.: 599 Hz

Min.: 0 Hz

Description

The compact inverter D, two in one Compact for small outputs. The double inverter KWD is a KW variant for two servo drives with a maximum output of 5 kVA. It combines two independent compact inverters in a compact housing with cold-plate cooling. The KWD controls two axes and halves the space requirement in the system while offering the same benefits as the KW compact inverter.
