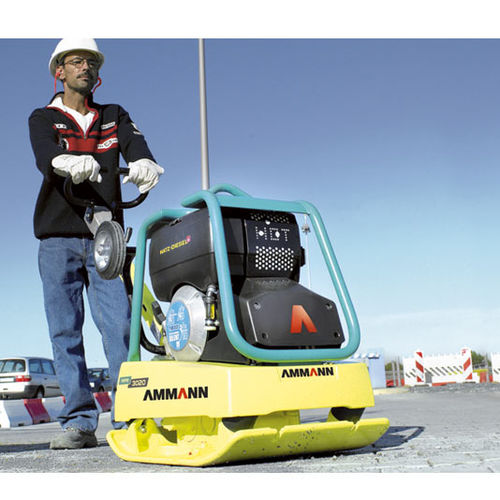

Forward travel vibratory plate APR 49/20

The APR 49/20 features good manoeuvrability and power with an 8,2 kw engine available to help with climbing and, ultimately, compaction. The machine performs at grades up to 30 per cent. The APR 49/20 is heavier than most of the vibratory plates with the exception of the APR 59/20. Working widths of 450 mm can be broadened with extensions of 75 mm and 150 mm. The engine hood is durable and protective but also grants great accessibility for servicing. Weights & Dimensions - with extension plates 75 mm - 413 kg with extension plates 150 mm - 424 kg A = Base plate length - 450 mm B = Machine length - 898 mm C = with handle - 1485 mm D = Machine heigth - 817 mm E = Handle height (work) - 1000 mm F = Handle height (transport) - 1285 mm G = Machine width - 450 mm Engine - Engine - Hatz 1B40 Fuel - Diesel Engine Output - 9 HP / 6,6 kW at RPM - 2900 Fuel consumption - 1,6 l/h Compaction Forces - Max, Vibration frequency - 65 Hz Max, Centrifugal force - 49 kN Working surface - 835 m2/h with extension plates 75 mm - 1115 m2/h with extension plates 150 mm - 1395 m2/h Max, compaction depth * - 60 cm
