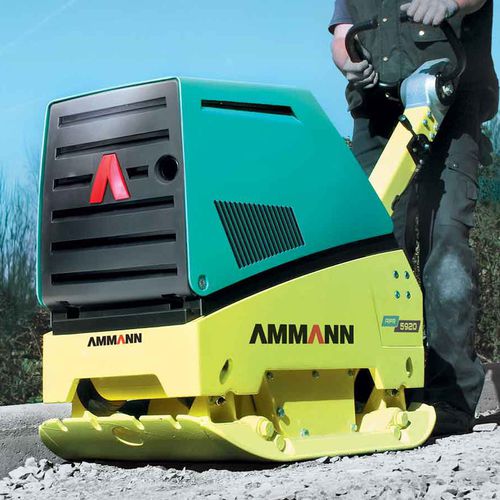

Reversible vibratory plate APR 59/20

Reversible vibratory plate - APR 59/20 - Ammann
Reversible vibratory plate - APR 59/20 - Ammann
Reversible vibratory plate - APR 59/20 - Ammann - image - 2
Reversible vibratory plate - APR 59/20 - Ammann - image - 3
Reversible vibratory plate - APR 59/20 - Ammann - image - 4
Reversible vibratory plate - APR 59/20 - Ammann - image - 5
Reversible vibratory plate - APR 59/20 - Ammann - image - 6
Reversible vibratory plate - APR 59/20 - Ammann - image - 7
Reversible vibratory plate - APR 59/20 - Ammann - image - 8
Reversible vibratory plate - APR 59/20 - Ammann - image - 9
Add to favorites
Compare this product


Characteristics

Type
reversible
Weight

440 kg
(970.03 lb)

Description

This reversible vibratory plate offers manoeuvrability and great climbing with an ability to work on 30 percent grades. High-performance diesel engines power the machines. The variable forward and reverse motion helps the vibratory plates overcome particularly difficult spots in hard-to-reach places. At 440 kg, it is the heaviest of the APR vibratory plates. Its engine provides 6,6 kw of power and the machines delivers 59 kN of centrifugal force. The engine hood is durable and protective but also grants great accessibility for servicing. Optional extensions of 75 mm and 150 mm can further improve productivity. Weights & Dimensions - with extension plates 75 mm - 462 kg with extension plates 150 mm - 473 kg A = Base plate length - 450 mm B = Machine length - 898 mm C = with handle - 1453 mm D = Machine heigth - 850 mm E = Handle height (work) - 1000 mm F = Handle height (transport) - 1324 mm G = Machine width - 450 mm Engine - Engine - Hatz 1B40 Fuel - Diesel Engine Output - 9 HP / 6,6 kW at RPM - 2900 Fuel consumption - 1,6 l/h Compaction Forces - Max, Vibration frequency - 65 Hz Max, Centrifugal force - 59 kN Working surface - 890 m2/h with extension plates 75 mm - 1180 m2/h with extension plates 150 mm - 1485 m2/h Max, compaction depth * - 70 cm

VIDEO
