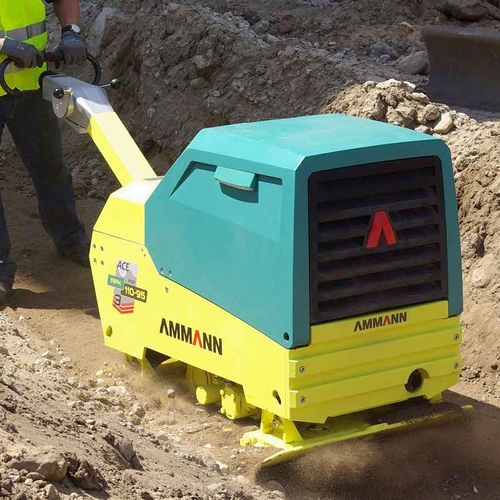

Forward travel vibratory plate APH 110-95

The APH 110-95 is the premiere vibratory plate compactor in the Ammann lineup. At 778 kg it is the heaviest plate. Yet the machine has a traveling speed beyond many soil compactors thanks to a powerful Kubota diesel engine, which also meets strict emissions standards. The vibratory plate still features the Ammann triple-shaft exciter system that enables compaction and climbing ability while making the machine easy to handle. The APH 110-95 is built for professionals with most features – including the ACEecon compaction measuring system – standard. Weights & Dimensions - Machine weight basic unit - 778 kg with extension plates 75 mm - 807 kg with extension plates 150 mm - 830 kg A = Base plate length - 520 mm B = Machine length - 1070 mm C = with handle - 1965 mm D = Machine heigth - 1000 mm E = Handle height (work) - 1200 mm F = Handle height (transport) - 1600 mm G = Machine width - 650 mm H = with extension plates - 800/950 mm Engine - Engine - Kubota D1105 Fuel - Diesel Engine Output - 23,8 HP / 17,5 kW at RPM - 3000 Fuel consumption - 4,5 l/h Compaction Forces - Max, Vibration frequency - 48 Hz Max, Centrifugal force - 110 kN Working surface basic unit - 1400 m2/h with extensions - 1720/2050 m2/h Max. compaction depth * - 110 cm Miscellaneous - Speed - 37 m/min Tank capacity - 16,5 l Gradeability - 35% Max. incline to all sides - 30°
