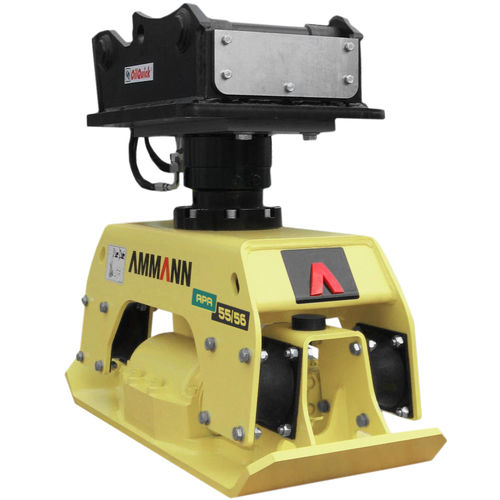

Excavator vibratory plate APA 55/56

The APA 55/56, with an operating weight of 385 kg and machine width of 560 mm, is suited for medium-sized excavators with more than 5 tonnes of operating weight. The compactor can be mounted in a few minutes and does not require hydraulic quick coupling devices. Only two hydraulic hoses are needed. The plate is equipped with a twin-shaft directional exciter featuring a relatively high frequency and low amplitude, which helps protect both the excavator and surrounding buildings. Weights & Dimensions - Metric A = Machine length - 1142 mm B = Machine width - 560 mm C = Machine height * - 580 mm Technical specification - Frequency - 45 Hz Centrifugal force - 55 kN Required oil quantity - 50-80 l/min Required operating pressure max - 150 bar Maximum back pressure - 30 bar Recommended size of the carrier - < 12 t
