Excavator vibratory plate APA 75/74

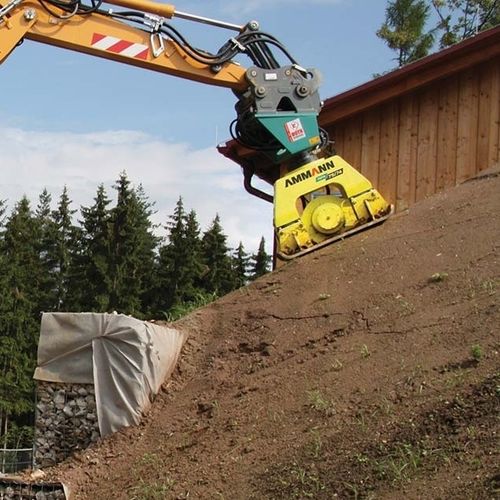

The APA 75/74 is in the large class of Add-On Compactors from Ammann. It is built for 10-tonne to 40-tonne excavators – and for applications where a strong compaction performance is required. The APA 75/74 has the same weight and width as the 72/74, but offers more centrifugal force at 84 kN. The plate is powerful and delivers impressive compaction results. It is able to compact layers as thick as 1 metre – substantially more than a vibratory plate. This helps save significant time and resources. Versatility and robust design also helps the plates stand out. They are reliable and ready to go at any time. And they can reach locations that traditional vibratory plates simply cannot access. Weights & Dimensions - Metric A = Machine length - 1142 mm B = Machine width - 740 mm C = Machine height * - 1350 mm Technical specification - Frequency - 36 Hz Centrifugal force - 82 kN Required oil quantity - 150 l/min Required operating pressure max - 250 bar Maximum back pressure - 10 bar
