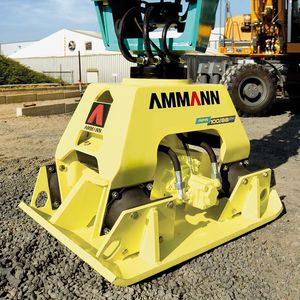

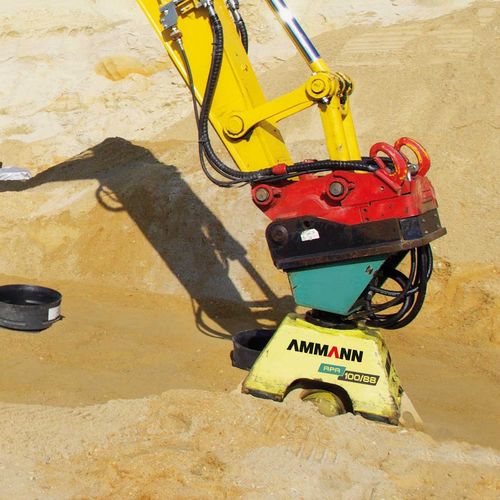

Excavator vibratory plate APA 100/88

The APA 100/88 is heavy and powerful, with an operating weight of 1170 kg and centrifugal force of 110 kN. The machine is in the large class of Add-On Compactors from Ammann. It is built for 10-tonne to 40-tonne excavators – and for applications where a strong compaction performance is required. The Add-On Compactor is able to compact layers as thick as 1 metre – substantially more than a vibratory plate. This helps save significant time and resources. Versatility and robust design also helps the plates stand out. They are reliable and ready to go at any time. And they can reach locations that traditional vibratory plates simply cannot access. Weights & Dimensions - Metric A = Machine length - 1295 mm B = Machine width - 880 mm C = Machine height * - 1350 mm Technical specification - Frequency - 36 Hz Centrifugal force - 110 kN Required oil quantity - 150 l/min Required operating pressure max - 250 bar Maximum back pressure - 10 bar
