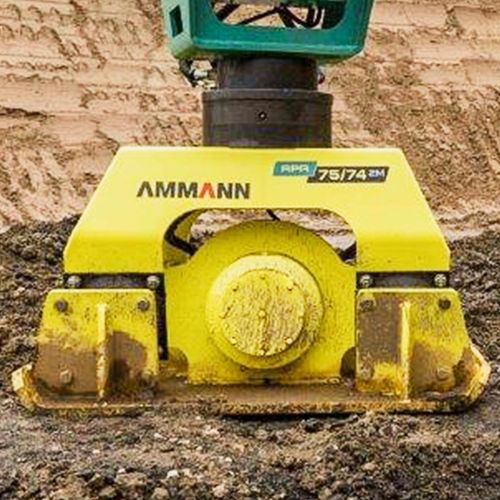

Excavator vibratory plate APA 75/74 2M

The APA 75/74 2M is a productive tool that offers the operator the opportunity to change between two different working modes. High amplitude allows the machine to work with the greatest compaction force and most efficiency on substructure work. Lower compaction force can be used when working in sensitive areas, such as over pipes or where a high vibration force could damage surrounding buildings. Equipped with a standard hydraulic 360° infinite rotating motor, the machine is suitable for excavators from 10 tonnes to 40 tonnes. This allows the use of machines in diverse conditions and on smaller jobsites where space is tight but heavy compaction power still is required. Weights & Dimensions - Metric A = Machine length - 1142 mm B = Machine width - 740 mm C = Machine height * - 1350 mm Technical specification - Frequency - 36/55 Hz Centrifugal force - 75/40 kN Required oil quantity - 150 l/min Required operating pressure max - 250 bar Maximum back pressure - 10 bar
