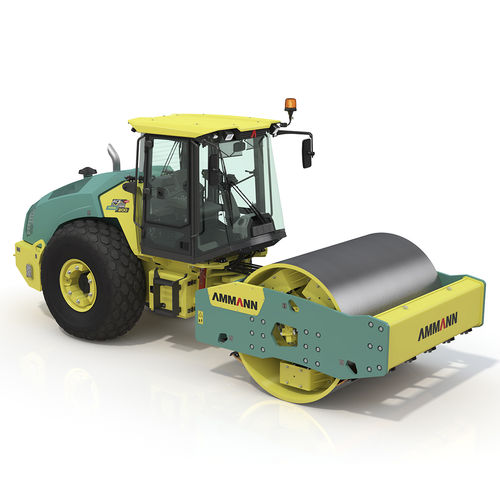

Single-cylinder road roller ARS 200 TIER 3

vibrating

The Ammann ARS 200 T3 Soil Compactor goes to work on jobsites where the ultimate compaction power is needed, including sub-bases for heavy transportation construction such as railways, airfields and harbors. It combines advanced amplitude and vibratory systems with a heavier operating weight of 22 tons to deliver industry-leading compaction outputs. Options can make the machine even more productive. HX versions of the roller are available that excel in jobsites where high tractive efforts are required. Optional ACEforce technology identifies uncompacted spots. In addition, all measured values can be displayed and evaluated including load-bearing capacity of material, number of passes and frequency/amplitude values. A = Machine length - 6688 mm - 263.3 in B = Wheel-base - 3460 mm - 136.2 in C = Machine height - 2985 mm - 117.5 in D = Machine height (removed CAB / ROPS) - 2565 mm - 101 in E = Drum width - 2130 mm - 83.9 in F = Machine width - 2258 mm - 88.9 in G = Machine length (blade) D/PD - -/7496 mm - -/295.1 in H = Ground clearance - 500 mm - 19.7 in I = Drum diameter D/PD - 1600/1795 mm - 63/70.7 in J = Drum shell thickness D/PD - 45/30 mm - 1.8/1.2 in K = Machine width (blade) D/PD - -/2441 mm - -/96.1 in Type - ARS 200 D - Weights - - Operating weight CECE - 19750 kg - 43540 lb Static linear load - 58.6 kg/cm - 328.2 lb/in Front axle load - – - – Rear axle load - – - – Drum and wheels - - Working width - 2130 mm - 83.9 in Drum diameter - 1600 mm - 63 in Shell thickness - 45 mm - 1.8 in Type - ARS 200 PD
