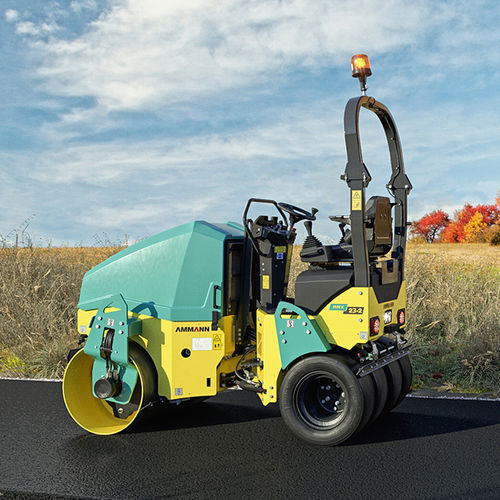

Tandem road roller ARX 23-2C

combinationarticulated

The Ammann ARX 23-2C Tandem Roller makes it even easier for operators to work next to obstructions such as curbs. It also is a combination roller, with a drum in front and four pneumatic tyres in the rear. The roller, with a drum width of 1000 mm, features a new articulation joint that enables quick drum adjustment from in-line to offset configurations. Rollers that are offset are able to work close to obstructions. The combination feature provides a number of added benefits. The tyres provide a kneading effect, helpful on certain types of asphalt mixes and temperatures. The tyres also are exceptional at sealing joints. The roller features Kubota engines that meet U.S. Tier 4 Final emissions standards and are EU Stage V, and EU Stage IIIA/US EPA Tier 4 interim. Machine includes an intuitive dashboard layout, a redesign of the front and rear of the machine and a new LED light system. Reduced sound levels improve operator and jobsite safety, as does the new light system. A = MACHINE LENGTH - 2500 mm B = WHEELBASE - 1755 mm C = MACHINE HEIGHT - 2550 mm D = MACHINE HEIGHT (FOLDED ROPS) - 1935 mm E = DRUM WIDTH - 1000 mm E = TIRE-AXLE WIDTH - – G = MACHINE LENGTH (FOLDED ROPS) - 2585 mm H = GROUND CLEARANCE - 280 mm I = DRUM DIAMETER - 695 mm J = DRUM SHELL THICKNESS - 13 mm K = MACHINE WIDTH (TOTAL) - 1120 mm WEIGHT AND OPERATING CHARACTERISTICS - STAT. LIN. LOAD OF FRONT DRUM - 10.9 kg/cm TURNING RADIUS INSIDE - 2630 mm STEERING / OSCILLATING ANGLE - 30/6.5 ±° DRUM OFFSET - N/A
