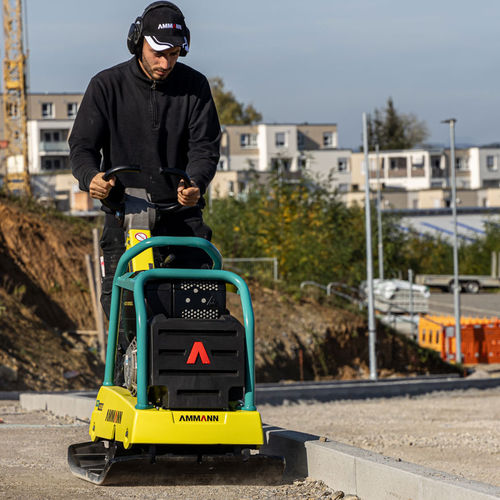

Forward travel vibratory plate APR 40/60

Productivity on any ground The APR 40/60 has good capabilities with a working width of 60 cm. It is often the vibratory plate of choice for contractors working with pavement blocks with thicknesses up to 10 cm. An optional available, toolless mountable rubber mat helps prevent damage during the compaction process. When working on other surfaces and in other applications. the APR 40/60 showcases operator friendly features and performance characteristics of all Ammann Vibratory Plate Compactors. Max machine weight (including options) - 283 kg A - Base plate length - 410 mm B - Machine length - 860 mm C - with handle - 1364 mm D - Machine heigth - 810 mm E - Handle height (work) - 1000 mm F - Handle height (transport) - 1180 mm G - Machine width - 600 mm Engine Engine - Hatz 1B30 Fuel - Diesel Engine Output - 6.1 HP / 4.5 kW at RPM - 2900 Fuel consumption - 1.3 l/h Compaction Forces Max. Vibration frequency - 85 Hz Max. Centrifugal force - 42 kN Working surface - 900 m²/h Spec. Surface pressure - 16.66 N/cm² Miscellaneous Hand-arm Vibrations - < 2.5m/sec² Speed - 25m/min Fuel tank - 5.0 l Gradeability - 35% Max. incline to all sides - 30°
