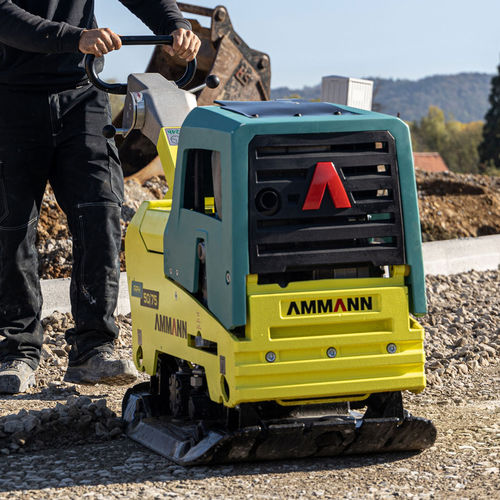

Forward travel vibratory plate APH 50/75

A trusted compactor The Ammann APH 50/75 Hydrostatic Vibratory Plate features a two-shaft exciter system that assures powerful compaction forces. This machine is highly reliable and trusted in the marketplace because of its robust design and long component life. APH 50/75 is the smallest machine within the APH range and weighs in at 367 kg. It can be operated easily and comfortably, even in tight areas, and works well around obstacles such as columns and in cohesive materials. Weights & Dimensions - A - Base plate length - 450 mm B - Machine length - 900 mm C - with handle - 1600 mm D - Machine heigth - 820 mm E - Handle height (work) - 1000 mm F - Handle height (transport) - 1500 mm G - Machine width - 600/750 mm Engine - Engine - Hatz Supra 1D50S Fuel - Diesel Engine Output - 9.5 HP / 7 kW at RPM - 3200 rpm Fuel consumption - 1.7 l/h Compaction Forces - Max. Vibration frequency - 70 Hz Max. Centrifugal force - 50 kN Working surface basic unit - 1125 m²/h Max Surface Pressure - 18.52 N/cm² Miscellaneous - Operating Speed - 25 m/min Tank capacity - 5 l Gradeability - 36% Max. incline to all sides - 30°
