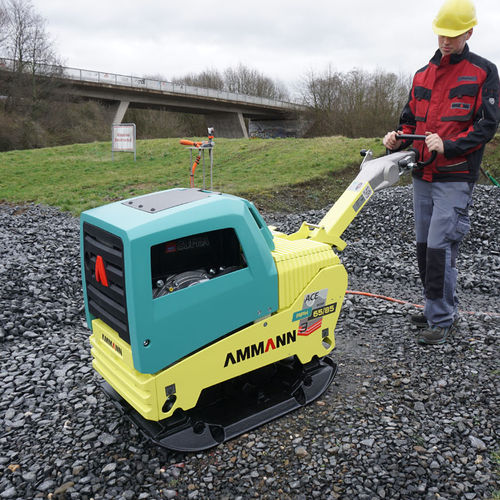

Forward travel vibratory plate APH 65/85

Highly productive on any ground The APH 65/85 is a powerful worker that delivers compaction force every step of the way. The plate is equipped with the market-leading Ammann three-shaft exciter system, which not only enables performance and climbing ability but also makes the machine more responsive and easier to handle for the operator. The optional ACEforce compaction measuring system is a key tool many contractors utilise in efforts to achieve thorough, efficient compaction results. Weights & Dimensions - A - Base plate length - 470 mm B - Machine length - 930 mm C - with handle - 1840 mm D - Machine heigth - 905 mm E - Handle height (work) - 1000 mm F - Handle height (transport) - 1500 mm G - Machine width - 700/850 mm Engine - Engine - Hatz 1D81S Fuel - Diesel Engine Output - 13.7 HP / 10.1 kW at RPM - 3000 rpm Fuel consumption - 2.5 l/h Compaction Forces - Max. Vibration frequency - 55 Hz Max. Centrifugal force - 65 kN Working surface basic unit - 1632 m²/h Max Surface Pressure - 19.76 N/cm² Miscellaneous - Operating Speed - 32 m/min Tank capacity - 7 l Gradeability - 36% Max. incline to all sides - 30° Options - Extension Plates - 75 mm / 150 mm
