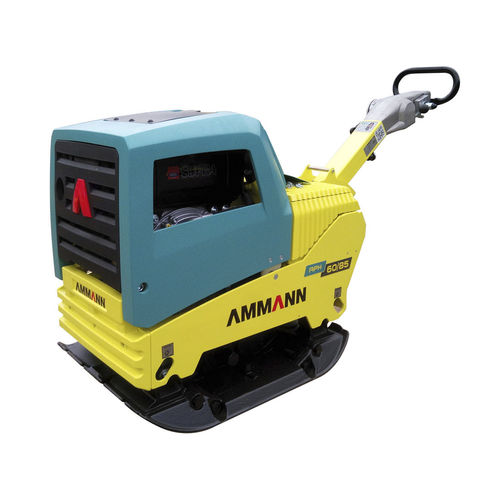

Forward travel vibratory plate APH 60/85

Trusted and reliable Weighing in at 464 kg, the APH 60/85 features a twin-shaft exciter system with the efficient and powerful compaction it brings. The machine is highly reliable and trusted in the marketplace because of its robust design and long component life. The plates can be operated easily and comfortably, even in tight areas, and work well around obstacles such as columns and in cohesive materials. The machine also is smooth when changing directions. Weights & Dimensions - A - Base plate length - 470 mm B - Machine length - 930 mm C - with handle - 1840 mm D - Machine heigth - 905 mm E - Handle height (work) - 1000 mm F - Handle height (transport) - 1500 mm G - Machine width - 700/850 mm Engine - Engine - Hatz Supra 1D81S Fuel - Diesel Engine Output - 13.4 HP / 10 kW at RPM - 3000 rpm Fuel consumption - 2.5 l/h Compaction Forces - Max. Vibration frequency - 69 Hz Max. Centrifugal force - 60 kN Working surface basic unit - 1428 m²/h Max Surface Pressure - 18.24 N/cm² Miscellaneous - Operating Speed - 28 m/min Tank capacity - 7 l Gradeability - 36% Max. incline to all sides - 30° Options - Extension Plates - 75 mm / 150 mm
