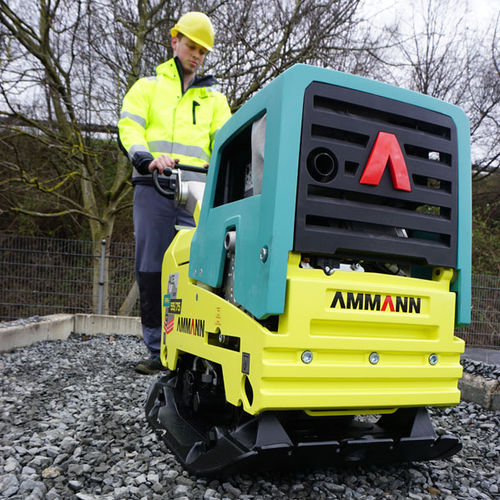

Forward travel vibratory plate APH 55/75

Compaction power combined with speed This hydrostatic vibratory plate compactor distinguishes itself with its high compaction power and climbing ability. The plate is equipped with the market-leading Ammann three-shaft exciter system, which not only enables performance and climbing ability but also makes the machine more responsive and easier to turn. Several options make the plate fit your particular needs. A - Base plate length - 450 mm B - Machine length - 900 mm C - with handle - 1600 mm D - Machine heigth - 820 mm E - Handle height (work) - 1000 mm F - Handle height (transport) - 1500 mm G - Machine width - 600/750 mm Engine - Engine - Hatz Supra 1D50S Fuel - Diesel Engine Output - 9.5 HP / 7 kW at RPM - 3200 rpm Fuel consumption - 1.7 l/h Compaction Forces - Max. Vibration frequency - 70 Hz Max. Centrifugal force - 55 kN Working surface basic unit - 1215 m²/h Max Surface Pressure - 20.37 N/cm² Miscellaneous - Operating Speed - 27 m/min Tank capacity - 5 l Gradeability - 36% Max. incline to all sides - 30° Options - Extension Plates - 75 mm / 150 mm
