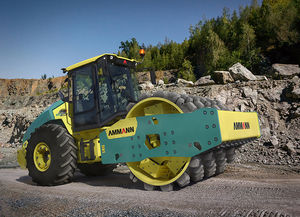

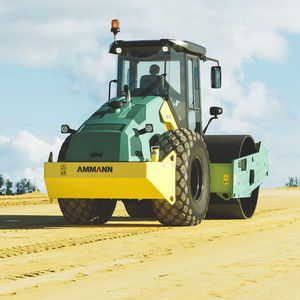

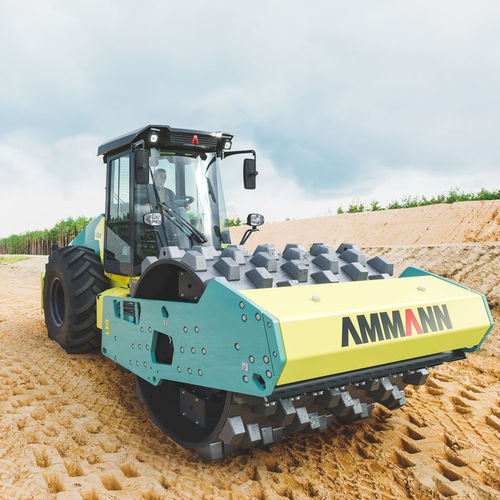

Single-cylinder road roller ARS 170

The ARS 170 Soil Compactor is known for its visibility, fuel efficiency and climbing ability. Compact design enables manoeuvrability and flexibility, making the machines exceptionally productive. Safety is maximised through a cab that provides operators with 360° visibility and an intuitive, conveniently located control display. The proprietary ACEforce Intelligent Compaction system, which offers absolute compaction measurement and optional documentation, improves efficiency and quality. The availability of a variable range of frequencies make the machine a perfect fit for many applications and varied materials. The ARS 170 also features ECOdrop, which reduces ownership costs through an increase in efficiency, a decrease in fuel consumption and a reduction in required fluids for hydraulics and the vibratory drum system. A = MACHINE LENGTH - 5950 mm B = WHEELBASE - 3040 mm C = MACHINE HEIGHT - 2970 mm D = MACHINE HEIGHT (OPERATOR SEAT) - 2200 mm E = DRUM WIDTH - 2130 mm F = MACHINE WIDTH - 2260 mm G = CURB CLEARANCE - 400 mm H = GROUND CLEARANCE - 430 mm I = DRUM DIAMETER - 1500 mm /*1685 mm J = DRUM THICKNESS - 35 mm /*25 mm - *PD
