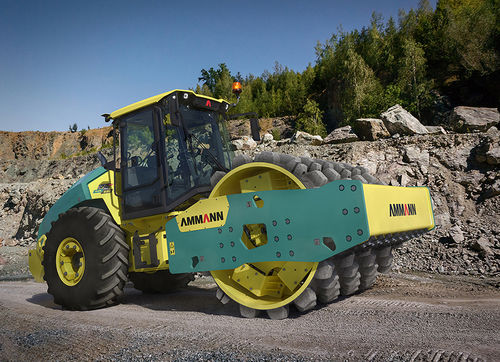

Single-cylinder road roller ARS 220 TIER 4f

The Ammann ARS 220 Tier 4f Soil Compactor goes to work on jobsites where the ultimate compaction power is needed, including sub-bases for heavy transportation construction such as railways, airfields and harbors. It combines advanced amplitude and vibratory systems with a heavier operating weight of 22 tons to deliver industry-leading compaction outputs. Options can make the machine even more productive. HX versions of the roller are available that excel in jobsites where high tractive efforts are required. Optional ACEforce technology identifies uncompacted spots. In addition, all measured values can be displayed and evaluated including load-bearing capacity of material, number of passes and frequency/amplitude values. A = Machine length - 6738 mm - 265.3 in B = Wheel-base - 3510 mm - 138.2 in C = Machine height - 2985 mm - 117.5 in D = Machine height (removed CAB / ROPS) - 2565 mm - 101 in E = Drum width - 2130 mm - 83.9 in F = Machine width - 2300 mm - 90.6 G = Machine length (blade) D/PD - -/7573 mm - -/298.1 in H = Ground clearance - 500 mm - 19.7 in I = Drum diameter D/PD - 1600/1795 mm - 63/70.7 in J = Drum shell thickness D/PD - 45/30 mm - 1.8/1.2 in K = Machine width (blade) D/PD - 2445 mm - 96.3 in
