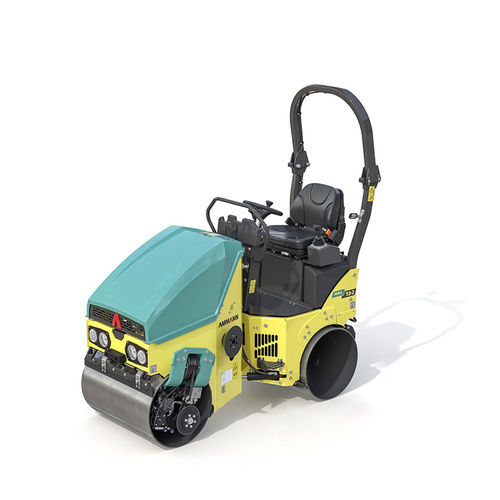

Tandem road roller ARX 12-2

articulated

The Ammann ARX 12-2 is a light, articulated ride-on roller that works flush against curbs and other obstructions and eliminates the need for special edge compaction efforts. The roller is powered by a Kubota engine. A new vibratory circuit setting delivers expanded frequencies that facilitate quicker compaction. The machine includes controls that enable intuitive operation; simple adjustment of soft/hard drive modes; safe and secure transport; and cost-effective serviceability. A = MACHINE LENGTH - 2140 mm B = WHEELBASE - 1440 mm C = MACHINE HEIGHT - 2400 mm D = MACHINE HEIGHT (FOLDED ROPS) - 1725 mm E = DRUM WIDTH - 820 mm F = WORKING WIDTH WITH OFFSET - 868 mm G = MACHINE LENGTH (FOLDED ROPS) - 2330 mm H = GROUND CLEARANCE - 230 mm H1 = SIDE CLEARANCE - 370 mm I = DRUM DIAMETER - 580 mm J = DRUM SHELL THICKNESS - 13 mm K = MACHINE WIDTH (TOTAL) - 865 mm
