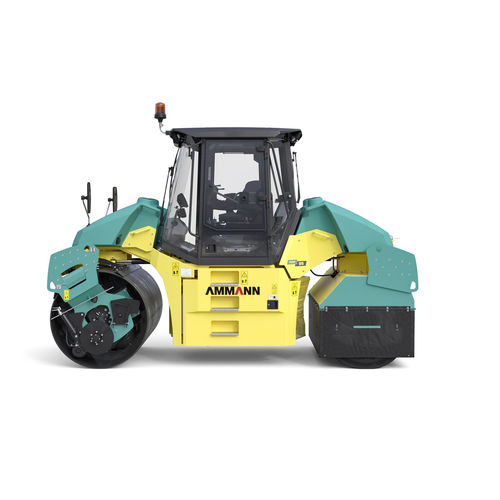

Tandem road roller ARP 95C

The ARP 95 Pivot-Steer Roller features the widest working width of any comparable compactor on the market – and offers considerable fuel savings, too. The redesigned machine frame enables the drums to be offset 1390 mm (4.6 ft.) on each side, compared with the previous version’s 1350 mm (4.4 ft.). The result is compaction width capability of 3070 mm (10 ft.), making the ARP 95 the market leader. Reduced fuel expenses are another key benefit. The compactor is powered by a Deutz EU Stage V / US EPA Tier 4 Final engine, featuring improved software and other efficiencies that lower fuel costs as much as 25 per cent when compared with the previous generation. A = MACHINE LENGTH - 4520 mm B = WHEELBASE - 3300 mm C = MACHINE HEIGHT - 3000 mm E = DRUM WIDTH - 1680 mm E = PNEU WIDTH - 1610 mm MAX WORKING OFFSET MODE - 3035 mm F = MACHINE WIDTH - 1810 mm H = GROUND CLEARANCE - 280 mm I = DRUM DIAMETER - 1220 mm J = DRUM SHELL THICKNESS - 17 mm
