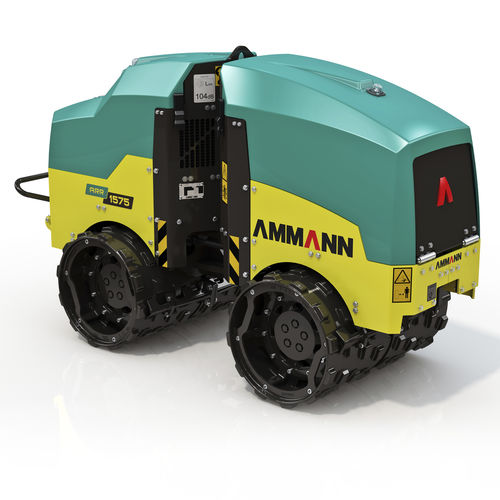

Trench compactor road roller ARR 1575

vibratingarticulated

The ARR 1575 is an articulated trench roller that provides perfect ground contact and optimal compaction. The machine and its padfoot drum provide results, even where other compactors have failed. Its ability to work in cohesive soils can prevent the need for soil removal and replacement, providing a significant financial impact. Two steering cylinders help make the ARR 1575 responsive and precise, while the oscillation feature provides excellent stability on uneven surface of a ditch. Dimensions - Metric - US A = Machine Length - 1980 mm - 78 in B = Wheelbase - 1000 mm - 39.4 in C= Machine Height - 1317 mm - 51.9 in D = Machine Height (hood) - 1282 mm - 50.5 in E = Machine Width - 601 mm - 23.7 in F = Drum Width - 640 / 850 mm - 25.2 / 33.46 in G = Machine Length - 2227 mm - 87.7 in I = Drum Diameter - 525 mm - 20.7 in Miscellaneous - - Fuel tank capacity - 28 l - 7.4 gal Hydraulic oil Capacity - 16 l - 4.2 gal Weight & Driving characteristic - - 640 mm - 25.2 in Oscilation Angle - ± 7° - ± 7° Working speed - 1.4 km/h - 0.9 MPH Travel speed - 2.8 km/h - 1.7 MPH Climbing ability - 30 % - 30 % Turning radius Inner - 1540 mm - 60.6 in Turning radius outer - 2190 mm - 86.2 in 850 mm - 33.46 in Oscilation Angle - ± 7° - ± 7° Working speed - 1.4 km/h - 0.9 MPH
