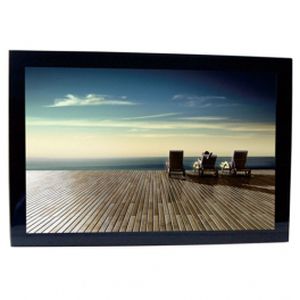

LED backlight panel PC AMG-12PPC01T9LCD12"800 x 600
Add to favorites
Compare this product
Characteristics
- Screen type
- LED backlight, LCD
- Display size
- 12"
- Resolution
- 800 x 600
- Processor
- dual-core
- Applications
- industrial
Description
rocessor System
CPU
A20 1GHz Dual-core
ROM
4GB
RAM 1GB
OS Android 4.0
HDMI port
1xHDMI
USB ports
2xUSB 2.0
Ethernet
1x10/100/1000BASE-T Gigabit Ethernet
CVBS/Audio
CVBS IN/Left And Right Channels
SD Card Expansion
Maximum Storage Expansion:32GB
LCD Display
Screen Size
12.1"
Active Display Area(mm)
246(H)x184.5(V)
Max Resolution
800x600
Support Color
16.2M Colors
Brightness(CD/㎡)
450
Backlight LED
Contrast Ratio
700:1
Pixel Pitch(mm)
0.3075x0.3075
Viewing Angles(CR=10)
160(H);140(V)
Response Time(Typ.Tr+Tf)
35ms
Type Type
Resistive TouchScreen
Power supply
Input Voltage
+12v@5A
Dimension(VxHxT)
285.6x226x50
Temperature Range
Operating Temperature
-30~85℃
Storage Temperature
-30~85℃
Relative Humidity
5(%RH)~90(%RH)
