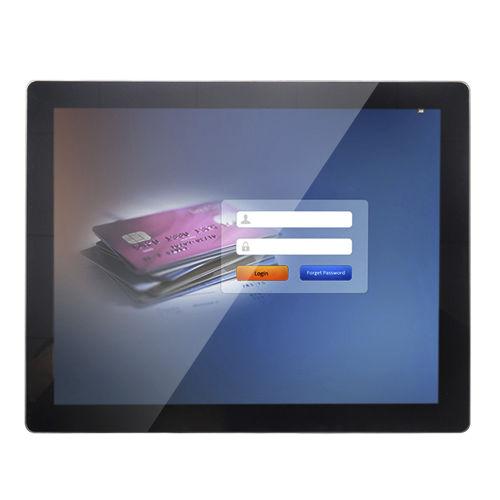

LCD monitor AMG-15OPBK02T1TFTmultitouch screenwith PCT touch screen
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, TFT, multitouch screen, with PCT touch screen, LED backlight
- Display size
- 15"
- Resolution
- 1024 x 768
- Mounting
- open-frame, VESA mounting, wall-mount
- Applications
- industrial
- Other characteristics
- high-brightness, sunlight-readable, VGA-DVI port, wide temperature range
Description
Screen Size：15"
Active Display Area (mm)：304.128 (H) x 228.096(V)
Pixel Pitch (mm)：0.297 (H) x 0.297 (V)
Display Mode：Normally white
Display Resolution (pixel)：1024x768
Contrast Ratio：700:1
Touch screen(optional)：PCAP Touchscreen(10 Points)
Brightness (CD/㎡)：1200nits(Embedded Light Sensor)
Backlight：LED
Viewing Angles (CR =10)：160 (H); 140 (V)
Response Time(Typ.Tr+Tf)：8ms
Signal Connector：VGA/DVI/USB
Power Consumption：DC 24V
Dimension(VxHxT)：346x270x55
Operating Temperature：-30~85°C
Storage Temperature：-30~85°C
Relative Humidity：5(%RH)~90(%RH)
Application
ATM / VTM / Kiosk / AFCetc
