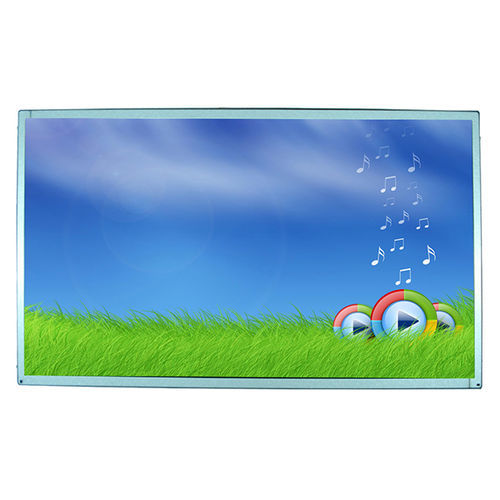

LCD monitor AMG-22OPHA01T2resistive touch screenLED backlightinfrared touchscreen
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, resistive touch screen, infrared touchscreen, LED backlight
- Display size
- 22"
- Resolution
- 1680 x 1050
- Mounting
- panel-mount
- Other characteristics
- VGA-DVI port
Description
Branded LCD panels with perfect image quality and wide viewing angles
Built with industrial-grade components for a reliable 24/7/365 operation
LED backlight for low power consumption to save more energy
Various touchscreen options like PCAP, Resistive, IR, SAW etc
High-end mechanical design to meet tough environmental conditions and requirements,
Customization solution available
Specifications
Active Display Area (mm)
-
473.76 (H) x 296.1 (V)
Pixel Pitch (mm)
0.282 (H) x 0.282 (V)
Display Mode
Normally Black
Contrast Ratio
1000：1
Display Color
16.7M
Brightness (CD/㎡)
300
Viewing Angles (CR =10)
178 (H); 178(V)
Response Time(Typ.Tr+Tf)
-
20ms
Power Consumption
DC 12V
Dimension(VxHxT)
532x322.6x60.5
Operating Temperature
0～50℃
Storage Temperature
-20～60℃
Relative Humidity
5(%RH)～90(%RH)
