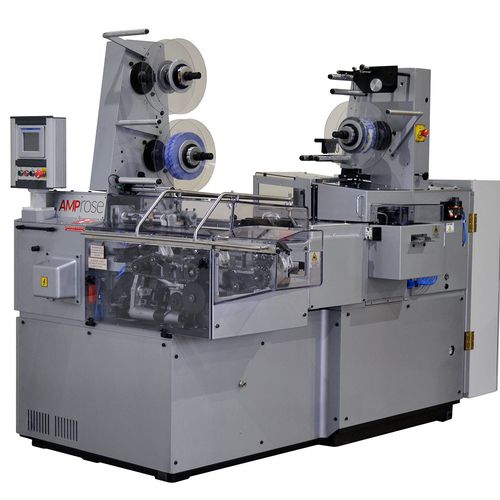

PLC-controlled packaging machine 340-342

for confectionery products

The 340/342 is a medium speed cut and wrap stickpack machine, which has been designed for strength and durability as well as ease of operation and low maintenance. The machine sizes, shapes, cuts to length and wraps toffee, chewy candy, bubble gum or high boiled sugar in end or under fold style. The individually wrapped pieces are then collated into the desired number of pieces and over-wrapped into a ‘stick’, with heat sealed and folded ends. The ‘342’ presents the products in flat pack, whereas the ‘340’ machine provides an ‘on-edge’ presentation. The cut and wrap stickpack machine is capable of up to 550 individual pieces/minute, or 180 sticks/minute. Features Long, efficient life The cut and wrap stickpack machines have been designed to withstand the rigours of high-speed confectionery production. Precision-machined components are housed in solid frames and are constantly lubricated. External parts are designed for easy removal for cleaning and maintenance purposes. The machines therefore require little servicing, maintenance or spare parts. Simple yet sophisticated control system Control of the machine is achieved through a PLC system, which has diagnostic features such as warnings of paper ruffles or guards incorrectly positioned. All electrical and electronic components are of the highest international standards and are housed in sealed control panels with hinged doors for access. Operation of the machine is via the conveniently located push button controls. Health and Safety assured Electrically interlocked sound-proofed guards are used, affording protection to the user from noise and movement hazards.
