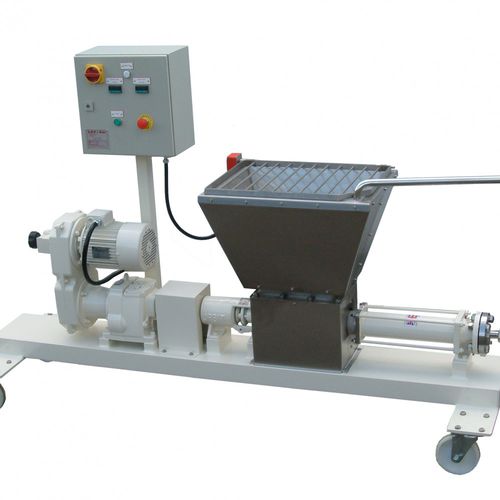

Automatic filler F44 Centre Filler

for liquidsfor jamfor viscous products

The F44 centre filler has been developed from the proven F42 centre filling machine. The centre filler machine has been continually improved and now has many new features. The drive is through an Inverter controlled geared motor with a speed control potentiometer on the operator control panel. The storage hopper is heated either electrically or by hot water, depending on the product to be used. If electrical heaters are used, these are controlled through a simmerstat, with the temperature control on the operator control panel. The centre filler is usually supplied as part of the complete hard candy processing line manufactured by A.M.P-Rose, but it can also be incorporated into an existing production line. The drive unit, pump assembly and product hopper are mounted to a steel fabricated base fitted with 152 mm diameter rust-proof castors, which allows the centre filler to be easily moved when necessary. The product hopper is made from food-grade stainless steel and painting is to food finish standards. As an alternative, the centre filler can be supplied as a completely stainless steel unit. Products Suitable for most types of liquid and viscose paste filling materials, for example jams, creams, fondants and chocolate pastes. Operation A batch of prepared filling mixture is either pumped or manually loaded in to the stainless steel hopper (approx. 50 litre capacity). The heater around the hopper maintains the temperature of the mixture at the desired level. The primary feed from the hopper is by a stainless steel auger, which ensures a smooth positive flow to the pump.
