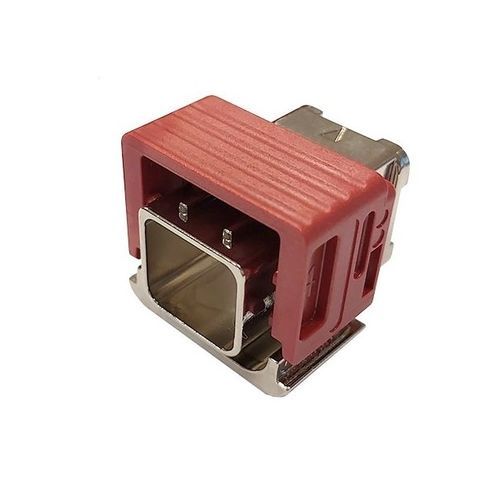

Rectangular plug SIM2B20A000

femalethermoplasticnickel

Reach status: Compliant RoHS status: Compliant Obsolescence status: Active Standard: EN4165 | ARINC809 Standard Part Number: EN4165M61AA The EN4165 / SIM Monomodule Series (ARINC 809) connector is a mono modular, push-pull connector that is ideal for In-Flight Entertainment Systems, Cabin Service Systems, and other interconnect system requirements. Especially suited for applications where shielding is mandatory. Military & Commercial Aerospace specification for rectangular modular connectors Fully qualified and compliant with ARINC 809 specifications Tested and qualified per EN4165 Series specifications Lightweight and robust thermoplastic; metalized for shielding More than 20 different inserts to choose including butt joint and expanded beam optical contacts SIM modules in overmold Technology Fixing accessories, multiple colors, flight caps and 3-pin quick install versions are also readily available Fire/Smoke/Toxicity conform to ABD0031 and FAR 25853
