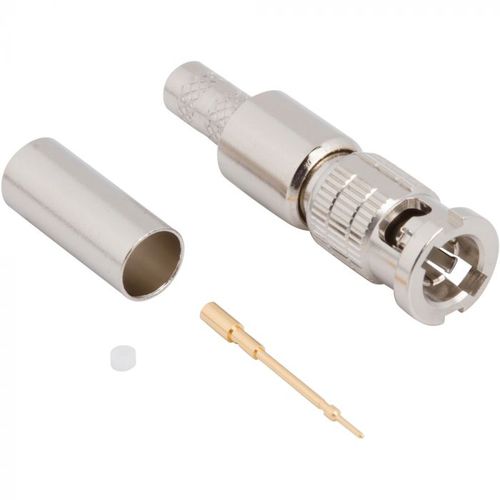

RF connector 034-1107-12G

BNCMCXPCB

The 1.0-2.3 connector series was originally introduced by the European telecommunications market in the 1990s. The compact design allows for denser connector packing which makes this interface an ideal solution for applications where space constraints exist. DIN 1.0-2.3 connectors are available to perform at 50 ohm with a maximum frequency of 10 GHz as well as 75 ohm with a maximum frequency of 4 GHz. These performance specifications support high data rates for AES Audio, SD video, HD video, 3Gb/s video, and other high density digital broadcast formats. The DIN 1.0-2.3 connector series complies with DIN 41626, DIN 47297, and NFC 93-571 international specifications. The Amphenol version features a patented ultra-slim push-pull coupling system which allows quick installation and ensures positive locking and high retention. •Patented push-pull coupling mechanism •Quick connect and disconnect •Space saving compact design •Ideal for high vibration applications
