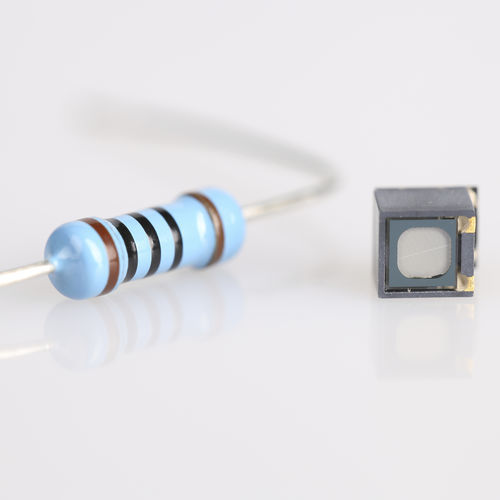

Infrared illuminator BELAGO

miniature

Dot-Pattern Infrared Illumiator for 3D Stereoscopic Imaging Features - High-contrast dot-pattern - High electro-optical efficiency - Eye-safety with resistive ITO Benefits - Enables fast and accurate depth sensing - Low power consumption for mobile and wall-plugged platforms - Ease of implementation on board a variety of platforms such as mobile, IOT and robotics - Integrated eye-safety Product parameters Field of Illumination: 78*60 Footprint [mm]: 4.2*3.6 General Description BELAGO is a proprietary infrared dot-pattern illuminator for stereoscropic imaging platforms with eye-safety feature. It produces a very high-contrast dot pattern that stereo-matching algorithms can use to address low-texture situations and achieve high-accuracy depth maps. An additional benefit of the dot pattern is a reduction of the computational load required to perform the depth calculation. The BELAGO dot-pattern illuminator is provided in a miniature package that is compatible with standard lead-free reflow processes. As such, it can be successfully used onboard of a great variety of 3D sensing platforms, from mobile to IoT to robotics. BELAGO emitters produce approximately 5k dots at 940nm. This product suits for the following applications: Active stereo 3D cameras Depth sensing cameras Mobile Industrial, e.g. access control, secure payment station, etc.
