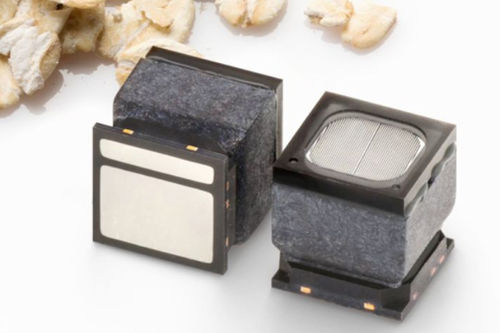

Infrared illuminator BELICE-SD

miniature

Dot-Pattern Infrared Illuminator for 3D Stereoscopic Imaging Features - High-contrast dot-pattern - High electro-optical efficiency - Small package size Benefits - Enables fast and accurate depth sensing - Low power consumption for mobile and wall-plugged platforms - Ease of implementation onboard a variety of platforms such as mobile, IoT and robotics Product parameters - Wavelength [nm]850 - Field of Illumination71° x 51° - Footprint [mm]3.4 x 3.5 General Description BELICE is a proprietary infrared dot-pattern illuminator for stereoscropic imaging platforms. It produces a very high-contrast dot pattern that stereo-matching algorithms can use to address low-texture situations and achieve high-accuracy depth maps. An additional benefit of the dot pattern is a reduction of the computational load required to perform the depth calculation. The BELICE dot-pattern illuminator is provided in a miniature package that is compatible with standard lead-free reflow processes. As such, it can be successfully used onboard of a great variety of 3D sensing platforms, from mobile to IoT to robotics. A pair of BELICE-SD emitters produce approximately 10k dots at 850nm. A 940nm version is currently under development. This product suits for the following applications: Active stereo 3D cameras Depth sensing cameras Mobile Nominal Output Power [mW]250
