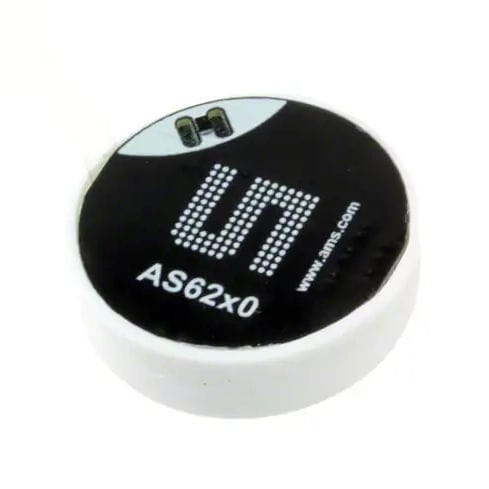

Thermocouple AS6200 series

digitalfor surface temperature measurementHVAC

High accurate digital temperature sensor Features - Digital temperature sensor - Complete sensor system with serial bus connection “Easy to Use” solution, i.e. no calibration or linearization needed - Alert functionality for exact temperature control Benefits - Optimal temperature accuracy for cost efficient designs - Ultra low power consumptions - Small integration size (WLCSP) Product parameters Interface: I²C Supply Voltage [V]: 1.8 to 3.6 Consumption [µA]: 6 @ 4 samples/s Dimension [mm]: 1.5 x 1 Ambient Temp. Range [°C]: -40 to 125 Accuracy: ±0.4°C (0°C to 65°C) Conversion Time [ms]: 32 General Description The AS6200 is a complete digital sensor system. It offers a unique combination of ultra-low power consumption, small form factor and high accuracy. The AS6200 provides a fully calibrated and linearized sensor system that can easily be accessed via an I²C interface. It provides a resolution of 12-bit over the full temperature range of -40°C to 125°C. The integrated alarm functionality enables micro controller wake-up calls on defined temperature thresholds. An internal voltage regulator enables stable accuracy independent of the supply voltage between 1.8 to 3.6V. For power sensitive applications, the device can enter a low-power wait state with 0.1μA current consumption.
