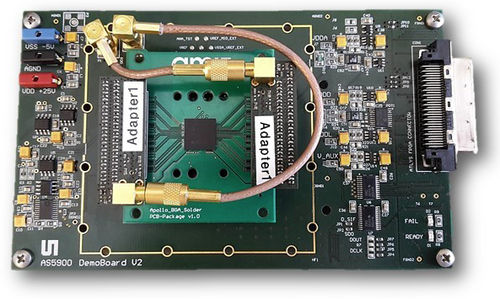

Power converter AS5900

digitaltemperaturespeed

AS5900 CT Detector Interface 128-channel low noise current-to-digital converter Features Flexible configuration to get the optimized operation point in your application Adjustable full scale range, resolution, integration time and power consumption High speed LVDS data interface On board voltage reference and temperature sensor Benefits Ultra-low noise down to 3200 electrons for a full-scale range up to 1µA Very fast integration time down to 50µs High linearity of ±250ppm of reading ±1ppm of FSR Very low power dissipation down to 1mW/channel Up to 26-bit resolution Product parameters Application: Medical, industrial and security X-ray scanner Primary Function: Current-to-digital Converter Channels: 128-channel Resolution [bit]: 26 Input Related Noise [fC]: 0.51 Min. Power Consumption [mW per Channel]: 1 Min. Integration Time [µs]: 50 Package: FBGA248 (10mm x 10mm) General Description The AS5900 device is a low noise, 128-channel current-to-digital converter that enables the readout of the photodiodes with highest sensitivity. High-resolution CT imaging can be achieved up to 26-bits resolution. Its 128-low-noise and high linear converter channels provide an increased gray scale, improved contrast and reduce artifacts of 3D CT images. The low power consumption of 1mW per channel reduces self-heating effects and the overall power consumption of the system. An integrated temperature sensor allows the calibration of temperature drifts of the X-ray detector modules.
