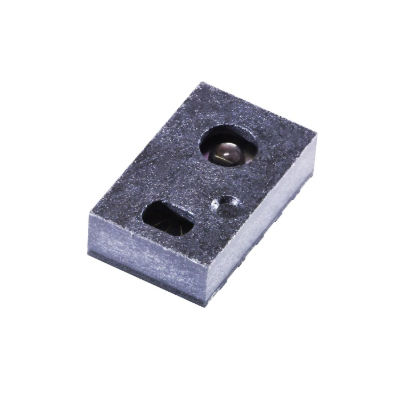

Time-of-flight sensor TMF8801 series

Time-of-Flight sensor with 945nm integrated IR VCSEL in a 2.2mm x 3.6mm x 1.0mm optical module 1.8V I²C Features Direct ToF technology with high sensitivity SPAD detection Fast Time-to-Digital Converter (TDC) architecture Sub-nanosecond light pulse 20 – 2500mm distance sensing @ 30Hz On-chip histogram processing 940nm VCSEL Class 1 Eye Safety Sunlight on-chip rejection filter and algorithm Industry’s smallest modular OLGA 2.2 x 3.6 x 1.0 mm package Benefits Delivers high SNR, wide dynamic range and no multi-path reflections Enables dark and sunlight environment distance measurement within ±5% Provides best-in-class resolution ranging mode detection sensing Enables accurate distance measurements Provides high accuracy, greater distance between cover glass, dynamic cover glass calibration, dirt or smudge removal and crosstalk compensation Eye-safety circuitry stops VCSEL driver if VCSEL fault occurs Optical filters with algorithm support enables high ambient light resilience Reduce board space requirements, enables low-profile system designs in restricted space Industrial Designs Product parameters Supply Voltage [V]: 2.7 - 3.3 I²C Bus: 1.8V Programmable: Mode setting, Repetition rate, Interrupt Integrated Capabilities and Components: Ambient light immunity (100k lux to 0 lux) Recommended Operating Distances [cm]: 2 - 250 Temperature Range [°C]: -30 to 70 Packages: OLGA, Pin Count 8
