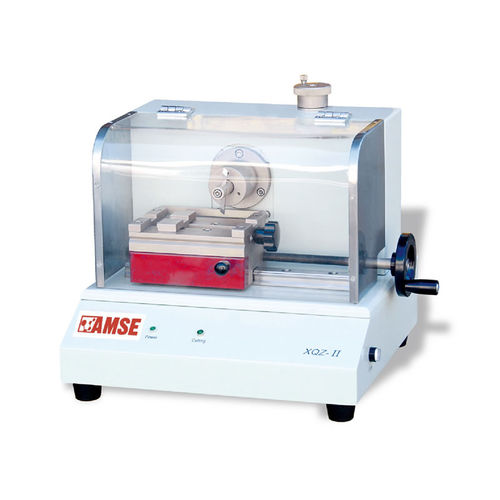

Sample preparation notching machine XQZ-II

AMSE Manual Notching Machine This type of equipment is used to notch polymer samples for Charpy and Izod impact tests. The machine is compliant with ISO 179, ISO 180, ASTM D256 and other equivalents. Features Manual notching machine with interchangeable knife to cut different notch profiles as required by different methods and Standards. Technical features - Knife stroke: 90mm - Maximum notch depth: 10 mm - Notching samples: more than 20/cycle - Dimensions: 400 ×270× 300 mm - Weight: 30 Kg Knives as per major ISO and ASTM standards: - Type A: 45o±1o r=0.25mm ± 0.05mm - Type B: 45o±1o r=1.00mm±0.05mm - Type C2: Thickness is 2 mm±0.2 mm r≤0.1 - Type C3: Thickness is 0.8 mm±0.1 mm r≤0.1 - Type C1: 45o±1o r=0.10mm±0.02mm
