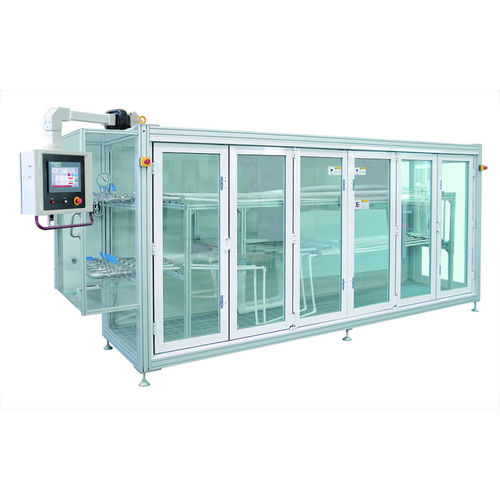

Thermal cycling tester

for pipe

Thermal cycling tester The system is used to determine the breakage of plastic pipes and fittings subjected to a specified internal pressure. International reference standards: ISO 10508, ASTM F 1335-98 and other equivalents. The system is composed by following elements: - test chamber - cold water tank (with refrigeration system and heat exchanger) - hot water bath (with heater) - control panel meter and flow control (optional) Technical features - Only testing pipes are subject to pressure and temperature increasing (all other parts of the system work at room temperature) - The system is equipped with access doors which facilitate the insertion of samples - Tests monitoring for each station through an integrated display - Test results are easily exported to Excel - Possibility to set pressure, flow and time of the test for each sample - Safety devices to ensure safety of operator. - Grundfoss pumps (made in Denmark) are used to bring pressure samples - Autofill of the tank - Pre-loading system for applying a starting voltage stress (optional) - Quick calibration system enables to adjust pressure and temperature while the samples are being tested
