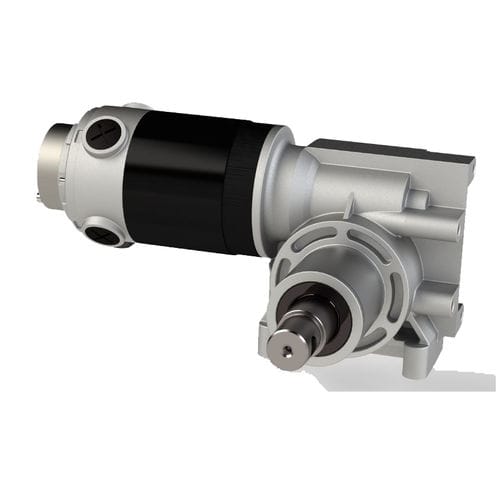

DC gear-motor

wormhelical gearright angle

Right-angled drives Our range comprises worm, helical and worm-helical gearboxes. Our helical gearboxes in particular are unique and exceed normal industry standards. Our drives are equipped with brushed permanent-magnet motors of various sizes, either with or without an electromagnetic brake. Various motor and gearbox designs allow a wide range of output speeds and output power. Together with many possible geometries of output shafts and housings, you thus have a wide range of possibilities available for your individual application. All right-angeld drives are ideally suited for all standard and premium applications with their high requirements in terms of quality, efficiency, smooth running and cost-effectiveness, premium electric wheelchairs for example. Technical data: •Low gear backlash •High power efficiency (up to 85%) •Output speed from 90 to 275 rpm (revolutions/minute) •Low noise level (less than 58db at idling speed) •Rated power from 180 - 550 Watt •Various output shaft diameters up to 25 mm •Total load capacity up to maximum 160 kg per drive (which means with 2 integrated drives for example in a wheelchair up to maximum 320 kg) •Motor available with 2 pole or 4 pole design •Operating voltage 24 V DC •Lifetime lubrication •Holding brakes •with manual release by lever or rope •12V or 24V •braking torque 3Nm •braking torques on the output shaft from 60Nm to 86Nm •Customized design solutions available upon request •Optional with encoder
