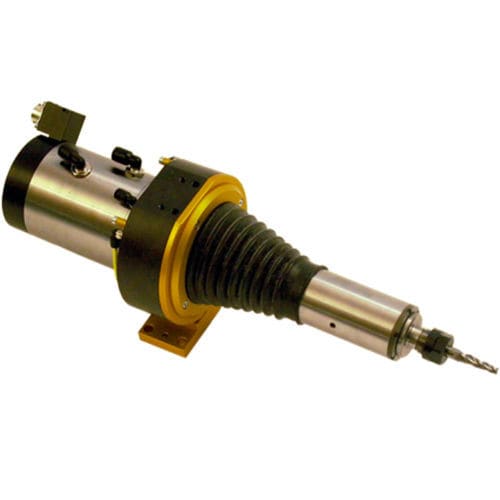

Deburring spindle Flexicut 2600

millinghigh-frequencyfor robots

The electrical milling tool FLEXICUT 2600 can be used for the economical deflashing of metallic as well as nonmetallic parts. It is well suited to remove primary burrs and flashes on aluminium casting parts. The spindle is freely compliable in all directions. The pressure against the part edge can be set from the robot program. • Power : 2.6 kW (3.5 hp) • Maximal toque : 0.83 Nm (0.6 ft lbs) • Maximal speed : 30'000 rpm • Compliance radial in all directions : ± 3.2° / ± 16 mm (at collet) • Compliance torque : 0 ... 15 Nm at Connection 1; 5 ... 30 Nm at Connection 1 and 2 • Compliance force : 109 N (24.5 lbs) at 6 bar (87 psi) (at collet) • Feed forward rate : 10 - 300 mm/sec. • Collet : ER 16 Ø 10-9 mm, 3/8 • Weight : 12 kg (26.5 lb)
