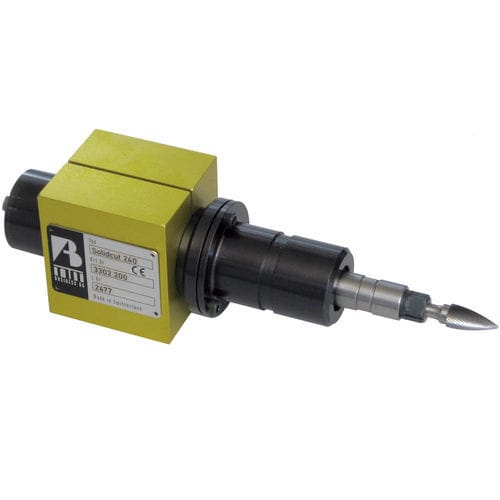

Milling spindle Solidcut 240deburringmachiningair-driven
Add to favorites
Compare this product
Characteristics
- Function
- milling, deburring, machining
- Drive system
- air-driven
- Other characteristics
- for robots
- Rotational speed
17,500 rpm
(109,955.74 rad.min-1)- Diameter
6 mm
(0.2 in)
Description
The milling tool SOLIDCUT 240 can be used for the economical machining, deburring and deflashing of metallic as well as nonmetallic parts. It allows high feed rates with an uniform quality. It is specially suitable for pre-milling at deflashing applications.
• Power : 240 W (0.32 hp)
• Idling speed : 35'000 rpm
• Feed forward rate : 5 - 250 mm/sec.
• Air consumption : 7.5 l/s (15.9 cfm)
• Weight : 1.5 kg (3.3 lb)
Catalogs
Solidcut 240
2 Pages
