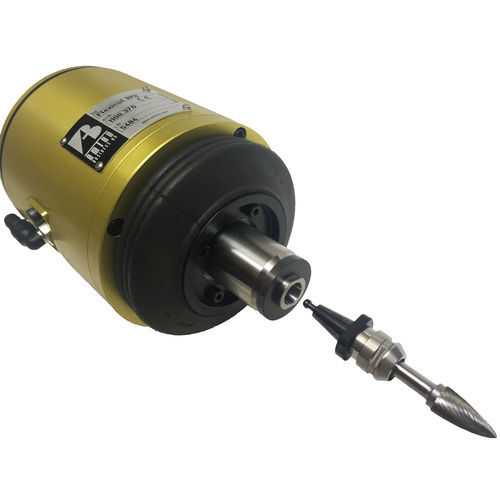

Insert milling tool Flexicut 370

deburringfor metalhigh-speed

The electrical milling tool FLEXICUT 370 can be used for the economical deburring of small and complex parts of metallic as well as nonmetallic material. The spindle is freely compliable in all directions. The pressure against the part edge can be set from the robot program. The tool changing system is compatible up to a speed of 60'000 rpm. • Power : 300 W (0.41 hp) at 35'000 rpm • Idling speed : 35'000 rpm • Max. Speed : 60'000 rpm • Compliance radial in all directions : ± 4.2° / ± 8 mm (at collet) • Compliance torque : 1.04 Nm (0.77 ft lbs) at 6 bar (87 psi) • Compliance force : 8 N (1.8 lbs) at 6 bar (87 psi) (at collet) • Feed forward rate : 5 - 250 mm/sec. • Collet : Ø 6 mm • Weight : 4.8 kg (10.58 lbs)
