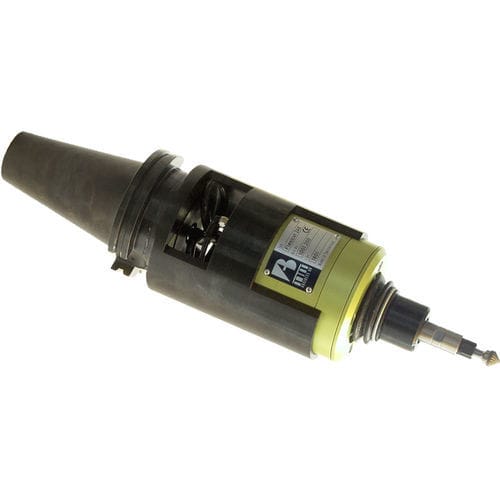

Machining spindle CNC-Flexicut 250-SK50

processhigh-speed

The CNC-Flexicut 250 can be used in machining centre to remove economically burrs generated in the machining process. The CNC-Flexicut follows the undefined part edges between machined and raw surfaces. It can compensate edge deviations of up to 8 mm. • Tool adapter : SK 50 • Powered by : Air motor • Power : 240 W • Idling speed : 35'000 rpm • Compliance radial in all directions : ± 4.2° / ± 8 mm (at collet) • Compliance torque : 1.04 Nm (2.54 ft lbs) at 6 bar (87 psi) • Compliance force : 8 N at 6 bar (87 psi) (at collet) • Feed forward rate : 2 - 15 m/min • Air consumption : 7.5 l/s (15.9 cfm) • Air supply : Through the main spindle op the machining centre • Air treatment : Service unit with filter and oiler, set for 2-3 drops/min • Collet : Ø 6 mm (optional 3 & 8 mm & 1/4 • Weight : 7.6 kg (16.8 lb)
