Communication IC modem ADRF5022

RFradarradio data transmission

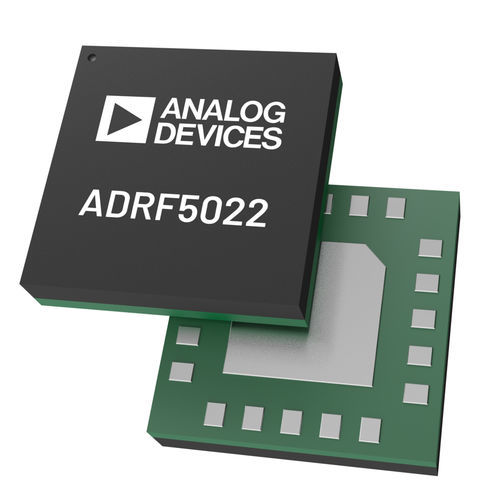

The ADRF5022 is a nonreflective, single-pole double-throw (SPDT) switch manufactured in the silicon process. The ADRF5022 operates from 100 MHz to 45 GHz with a typical insertion loss of 2.3 dB and isolation of 43 dB. The device has an RF input-power handling capability of 30 dBm for the through path, 24 dBm for the terminated path, and 30 dBm for the hot switching at the RF common port. The ADRF5022 requires a positive supply of +3.3 V and a negative supply of −3.3 V. The device employs complementary metal-oxide semiconductor (CMOS)-/low-voltage transistor to transistor logic (LVTTL)-compatible controls. The ADRF5022 can also operate with a single positive supply voltage (VDD) applied while the negative supply voltage (VSS) is connected to ground. In this operating condition, the small signal performance is maintained while the switching characteristics, linearity, and power handling performance is derated. For more details, see Table 2 in the data sheet. TheADRF5022 is pin-compatible with the ADRF5023, low-frequency cutoff version, which operates from 9 kHz to 45 GHz. The ADRF5022 comes in a 20-terminal, 3.0 mm × 3.0 mm, RoHScompliant, land grid array (LGA) package and can operate from −40°C to +105°C. APPLICATIONS Test and instrumentation Cellular infrastructure: 5G millimeter wave Industrial scanners Features Ultra-wideband frequency range: 100 MHz to 45 GHz Nonreflective design Low insertion loss 1.2 dB typical to 18 GHz 1.9 dB typical to 40 GHz 2.3 dB typical to 45 GHz High Isolation: 43 dB typical to 45 GHz High input linearity 0.1 dB power compression (P0.1dB): 31 dBm Third-order intercept (IP3): 55 dBm High power handling at TCASE = 85°C
