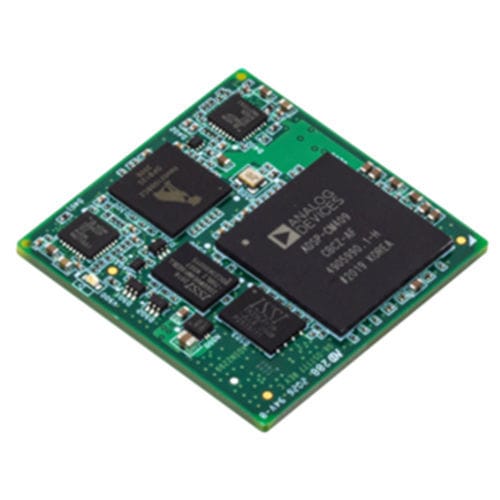

Ethernet controller ADIN2299

The ADIN2299 is a complete, pretested solution that manages the industrial protocol and network traffic for an applications processor. The module contains everything needed to participate in a Ether- CAT, PROFINET® real time (RT) and isochronous real time (IRT), EtherNet/IP network, including a communications controller, protocol stack, flash, RAM, follower controller, and physical layer (PHY). An applications processor connects via a universal asynchronous receiver transmitter (UART), serial peripheral interface (SPI), or Ethernet interface. At the software layer, the applications processor connects to a unified interface so the supported industrial protocols can be used without changing the applications processor software. The ADIN2299 platform was precertified so that the field device can operate in any of the supported industrial Ethernet networks. PRODUCT HIGHLIGHTS Precertified multiprotocol support Small form factor for embedded applications Embedded design solution for applications with unique form factors Low power and low latency Robust network policing ensures passing PROFINET Netload Class 3 APPLICATIONS Factory and process automation Motion control Building automation Transportation Robotics Energy All protocols precertified PROFINET RT (Class B) PROFINET IRT (Class C) EtherNet/IP with DLR EtherCAT Modbus/TCP Configurable applications processor interface UART: 115,200 bps to 1,000,000 bps Ethernet at 10 Mbps or 100 Mbps SPI follower: 10 MHz maximum clock
