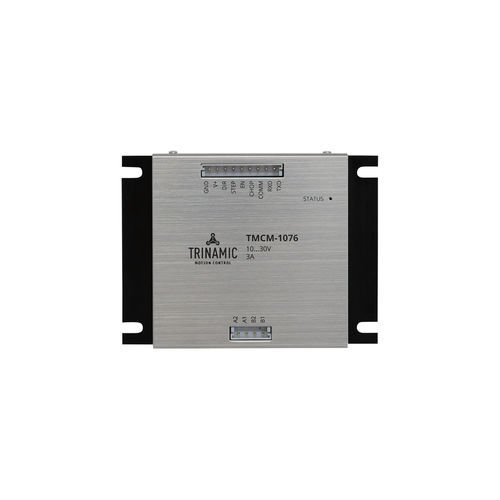

DC motor controller TMCM-1076

stepperintegratedsmart

The TMCM-1076 is an easy to use stepper motor driver unit with state of the art feature set. It is highly integrated and offers a convenient handling. The module is controlled via a step and direction interface. One configuration pin selects the current control mode between StealthChop™ for absolute silent motor control and SpreadCycle™ for high speed. A TTL UART interface allows for more advanced configuration and permanent parameter storage via TMCL™- IDE. All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. APPLICATIONS: Lab-Automation Manufacturing Robotics Factory Automation CNC Features Up to 3A RMS motor current Step and direction interface MicroPlyer™ to 256 microsteps StealthChop™ silent PWM mod SpreadCycle™ smart mixed decay StallGuard2™ load detection CoolStep™ autom. current scaling UART configuration interface
