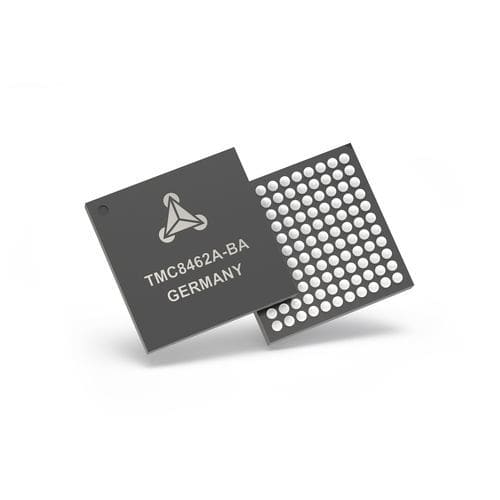

EtherCAT distributed motion control module TMC8462

1-axisindustrial

The TMC8462A is a complete EtherCAT® Slave Controller optimized for real time. It comprises all blocks required for an EtherCAT slave including two 100-MBit PHYs, a dual switch regulator power supply and 24V capable high voltage I/Os for industrial environments. Timer, watchdog, PWM and SPI/IIC master units allow for enhanced capabilities either in device emulation mode or in combination with an external CPU. The TMC8462A can also be used in combination with EtherCAT P, allowing for both data and power to be supplied using one single cable. TMC8462A-BA is the follow-up product for TMC8462-BA. APPLICATIONS: Motor Drives Industrial Automation Communication Modules Industry 4.0 Sensors & Encoders Robotics Building Automation Real-time control Connected Motion Features Standard compliant EtherCAT® Slave Controller 2x Integrated 100-MBit Ethernet PHY SPI Process Data Interface (PDI) Auxiliary IO Block with 24 configurable Multi-Function I/Os 4.75V to 35V Supply Voltage range 2x Integrated 3.3V and 5V-24V buck regulators 8 High Voltage I/Os (up to 35V, 100mA), -40°C to +85°C Temperature Range 9x9mm 121pin BGA package
