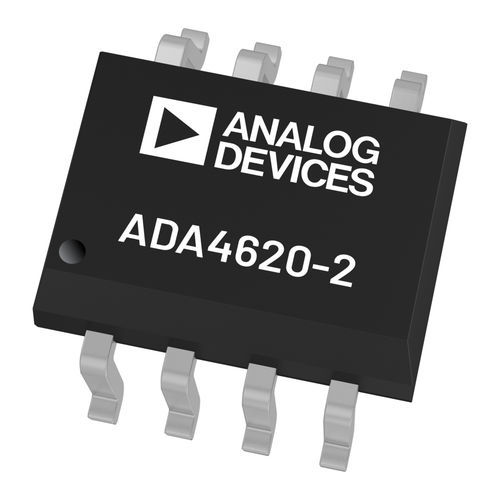

Transimpedance amplifying integrated circuit ADA4620-2

2-channelprecisionlow-noise

The ADA4620-1 and ADA4620-2 are 36 V, precision, low noise, low offset drift, JFET op amps. The parts offer the combination of top precision parameters at speed, and at extended operating range and temperature. The ADA4620 is ideal for high DC precision and AC performance. The specifications make the ADA4620 optimal as a front-end amplifier in a data-acquisition (DAQ) system, or for a TIA circuit with high input impedance. For only 1.3 mA of supply current per amplifier, the ADA4620 has a gain-bandwidth product of 16.5 MHz, a 32 V/μs slew rate, 5.1 nV/√Hz of broadband noise, and 225 nV p-p of 0.1 Hz to 10 Hz noise. The input voltage range includes the negative supply, and the output swings rail-to-rail. The ADA4620 is specified for operating over the temperature range of −40°C to +125°C, and dual supplies ranging from ±2.25 V to ±18 V, or on a single supply ranging from +4.5 V to +36 V. The ADA4620- 1 and ADA4620-2 are available in an 8-lead SOIC_N package. APPLICATIONS Transimpedance amplifiers Electronic test and measurement Scientific and field instruments Semiconductor test Data acquisition systems High impedance sensors Features Low offset voltage: ±30 μV typ Low offset voltage drift: ±0.32 μV/°C typ Low input bias current: ±0.8 pA typ, ±5 pA max Voltage noise density: 5.1 nV/√Hz at 1 kHz typ Gain bandwidth product: 16 MHz typ High slew rate: 32V/μs typ Low THD + N: −148 dB at 1 kHz typ Wide power supply range Dual supplies: ±2.25 V to ±18 V No phase reversal Unity-gain stable Extended high input common-mode range (V+) − 4.4 V < VCM ≤ (V+)
