- Absolute pressure sensor
- Analog Systems (SH) Co., Ltd.

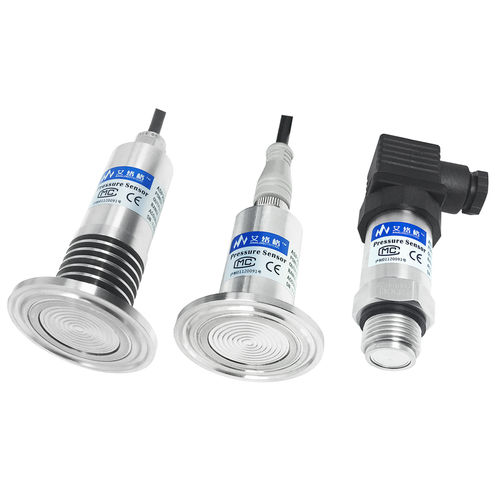

Absolute pressure sensor ASP2002CmembraneEMC
Add to favorites
Compare this product
Characteristics
- Pressure type
- absolute
- Technology
- membrane
- Protection level
- EMC
Description
Input data
Measuring ranges：0~100KPa…20MPa
Overload pressures：150%F.S
Burst pressures：300%F.S
Operating voltage：4~20mA / 0~5V / 0.5~4.5V / 1~5V (9~30VDC); 0～10V (12~30VDC)
Output data
Output signal：2 wire：4～20mA ; 3 wire：0.5～4.5V / 1～5V / 0～5V / 0～10V
Accuracy：0.25 %
Response time：≤10ms
Long-term drift：≤±0.1 % F.S typ. / year
Environmental condition
Operating temperature range：-20 ~ +80 ℃
Storage temperature range：-30 ~ +85℃
EMC performance：EN 61000 - 6 - 2 / 3 / 4 / 6
Vibration：10g,20Hz~2kHz (IEC 60068-2-6)
Shock：50g,11ms (IEC 60068-2-27)
Free fall：1m (IEC 60068-2-32)
Insulation resistance：>100 MΩ(100 VDC)
Dielectric strength：AC1000V/2mA(1min)
